Tongue & Groove 1-1/16" - 1
Tongue & Groove 1-1/16" - 1

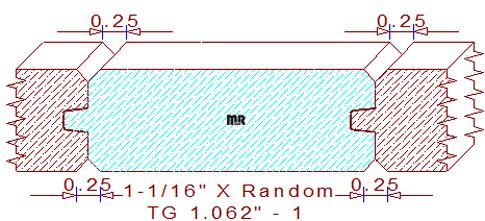

This 1-1/16" - 1 v-gap flooring for decks measures 1.062" in thickness. The widths are adjustable to any desired size within the machinery parameters. There is a .008" void built into the joining area for seasonal changes in relative humidity. When two pieces of finished lumber are joined together, they will create a 1/4" wide by 1/8" deep V groove on both faces wooden planks, as illustrated in the image above. The profile comprises a 1/8" wide by 1/8" deep forty-five-degree chamfer on each side edge with a 1/4" wide by 1/4" deep tongue and groove.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.063
Depth of Cut: 0.312
Left Cutter Head
Thickness: 1.063
Depth of Cut: 0.501
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.28
$137.28
Not Needed
Not Needed
Total:
$274.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.53
$144.53
Not Needed
Not Needed
Total:
$289.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.41
$155.41
Not Needed
Not Needed
Total:
$310.81
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
