Tongue & Groove 1-1/8"
Tongue & Groove 1-1/8"

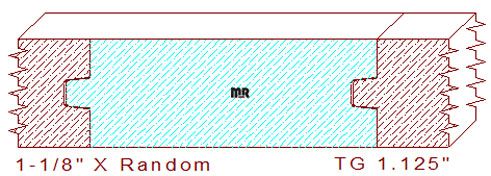

This 1-1/8" butt joint tongue & groove measures 1.125" in thickness; widths are adjustable to whatever size is desired within the limits of the machinery milling the lumber. The design consists of a 5/16" wide by 7/32" tall t & g with .010" of voided space left in the joining area for lumber expansion and contraction during seasonal relative humidity changes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.125
Depth of Cut: 0.270
Left Cutter Head
Thickness: 1.125
Depth of Cut: 0.215
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$140.50
$140.50
Not Needed
Not Needed
Total:
$281.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$148.00
Not Needed
Not Needed
Total:
$296.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.25
$159.25
Not Needed
Not Needed
Total:
$318.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
