Tongue & Groove 1-1/4"
Tongue & Groove 1-1/4"

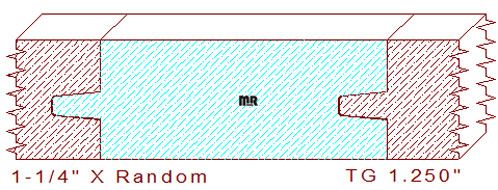

This 1-1/4" butt joint tongue and groove measure 1.250" in thickness, and widths are adjustable to the desired size. The profile is 1/2" tall, with a 5/16" wide tongue. It has a .010" void in the joint area for seasonal changes in relative humidity. When two pieces of milled lumber are joined, they form a simplistic butt joint.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.510
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
$147.00
Not Needed
Not Needed
Total:
$294.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$155.00
Not Needed
Not Needed
Total:
$310.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
$167.00
Not Needed
Not Needed
Total:
$334.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
