Tongue & Groove 1-1/4" - 2
Tongue & Groove 1-1/4" - 2

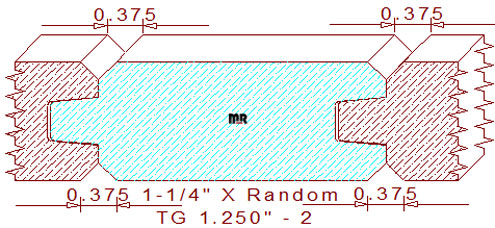

This 1-1/4" - 2 double v-channel/ gap decking measures 1.250" thickness, enabling the detail to use six-quarter lumber for milling on an industrial moulder. The knives can mill the side edges of a piece of lumber measuring 1-1/4" thickness with this pattern consisting of a 1/2" wide by 1/2" tall t & g with two 3/16" wide by 3/16" tall bevels on both faces. There is a .030" void in the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity. When two timbers get joined together, they create a 3/8" wide v-groove on both faces of the boards, enabling the installer to choose the best-milled face for the project.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.532
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.750
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
$155.00
Not Needed
Not Needed
Total:
$302.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$163.00
Not Needed
Not Needed
Total:
$318.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
$175.00
Not Needed
Not Needed
Total:
$342.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
