Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Tongue & Groove 1-1/4" - 5

Tongue & Groove 1-1/4" - 5

Tongue & Groove 1-1/4" - 5

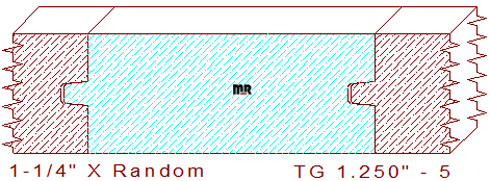

This 1-1/4" - 5 butt joint decking measures 1.250" in thickness, and widths can be manufactured to any desired size within the machinery used to mill the pattern. The profile consists of a centered 1/4" wide by 9/32" tall tongue and a 9/32" wide by 1/4" tall groove with a .008" void in the joining area for seasonal changes in relative humidity.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.281
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.250
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
$143.00
Not Needed
Not Needed
Total:
$286.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
$151.00
Not Needed
Not Needed
Total:
$302.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
$159.00
Not Needed
Not Needed
Total:
$318.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
