Tongue & Groove 1-1/4" - 7

Tongue & Groove 1-1/4" - 7

Tongue & Groove 1-1/4" - 7

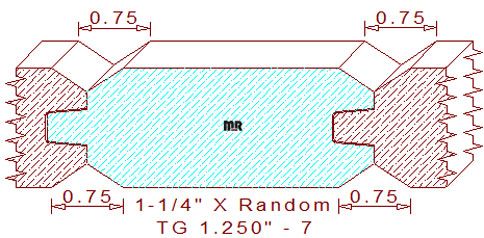

This 1-1/4" - 7 channel/gap siding measures 1-1/4" thickness; the width is adjusted to any desired size within the parameters of the moulder used to mill this detail. The tongue is 3/8" wide by 7/16" deep and is flanked with a 3/8" wide by 1/4" deep chamfer on both edges, the groove side has .010" of voided space in the joint area to ensure a snug fit when assembled. When two pieces of finished milled lumber are joined together, they create a 3/4" wide v-groove on both face sides of the merged board's

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.890
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
$151.00
Not Needed
Not Needed
Total:
$294.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
$159.00
Not Needed
Not Needed
Total:
$310.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
$167.00
Not Needed
Not Needed
Total:
$326.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
