Tongue & Groove 1-9/32"
Tongue & Groove 1-9/32"

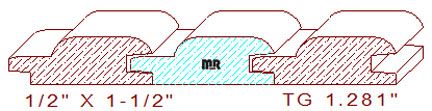

This tongue and groove moulding measures 1-1/2" in width by 1/2" in thickness. The face exposure dimension is 1-9/32" wide. The profile is composed of a 1/4" radiused edge fillet measuring approximately 1-1/16" wide. It transitions the thickness by 3/16" which creates the top portion of the tongue.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.265
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.226
Top Cutter Head
Width: 1.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$160.00
Not Needed
Total:
$428.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$169.00
Not Needed
Total:
$451.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$182.50
Not Needed
Total:
$485.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
