Tongue & Groove 1-5/16" - 1
Tongue & Groove 1-5/16" - 1

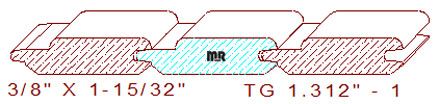

This 1-5/16" - 1 paneling measures 1-15/32" in width by 3/8" in thickness. It retains a face or exposed dimension of 1-5/16". The profile design presents two options for installation, a double chamfered face, or a double radius exposure with a 15/64" wide exposed gap/channel.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.375
Depth of Cut: 0.186
Left Cutter Head
Thickness: 0.375
Depth of Cut: 0.156
Top Cutter Head
Width: 1.468
Depth of Cut: 0.239
Bottom Cutter Head
Width: 1.468
Depth of Cut: 0.156
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$158.34
$158.34
Total:
$584.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$167.21
$167.21
Total:
$616.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$180.52
$180.52
Total:
$664.03
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
