Tongue & Groove 1-5/16" - 2

Tongue & Groove 1-5/16" - 2

Tongue & Groove 1-5/16" - 2

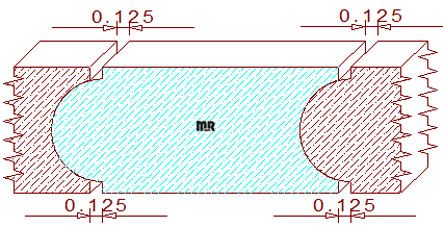

This 1-5/16" - 2 bullnose siding measures 1-5/16" thickness, and widths can be adjusted to any required size within the parameters of the moulder being used to mill the pattern. The profile consists of a 17/32" radius bullnose that fits into a slightly larger concave half-rounded circle with a 1/8" shoulder on each edge. When two pieces of lumber are joined together, they create a 1/8" wide by 1/8" deep channel/gap between them. The design is used to manufacture radiused hot tubs' outer panels. It is designed to adjust to the outside diameter of the tub itself so depending on the radius of the tub will determine the exact size of the gap when pieces are joined together.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.312
Depth of Cut: 0.406
Left Cutter Head
Thickness: 1.312
Depth of Cut: 0.531
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$146.10
$146.10
Not Needed
Not Needed
Total:
$292.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$154.35
$154.35
Not Needed
Not Needed
Total:
$308.70
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.60
$162.60
Not Needed
Not Needed
Total:
$325.19
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
