Tongue & Groove 1-5/16" - 3
Tongue & Groove 1-5/16" - 3

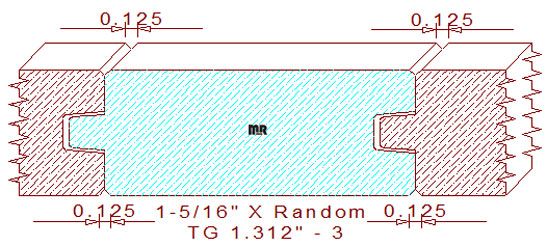

This 1-5/16" - 3 micro groove decking measures 1.312" in thickness; widths can be milled to any desired size. The profile comprises a 3/8" wide by 3/8" tall tongue with 1/16" of void on the groove for expansion and contraction of the wood with 1/16" chamfers on both the top and bottom edge. When two pieces of finished milled lumber are joined together, they create a 1/8" wide v-groove on both face sides of the joined lumber.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.312
Depth of Cut: 0.437
Left Cutter Head
Thickness: 1.312
Depth of Cut: 0.531
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$150.22
$150.22
Not Needed
Not Needed
Total:
$300.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.47
$158.47
Not Needed
Not Needed
Total:
$316.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.84
$170.84
Not Needed
Not Needed
Total:
$341.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
