Tongue & Groove 1-7/16" - 6
Tongue & Groove 1-7/16" - 6

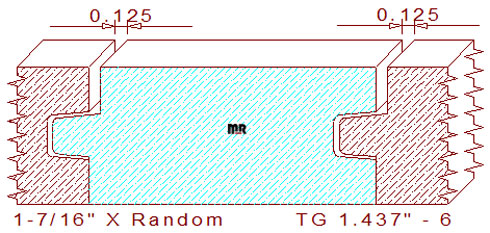

This 1-7/16" - 6 channel/gap decking measures 1.437" thickness, enabling the pattern to be machined out of six or eight-quarter lumber. The width can be milled to any desired size within the parameters of the moulder/shaper used to cut the pattern. The decorative profile is composed of a 7/16" wide by 1/2" tall groove, and the offset tongue dimension is 3/8" wide at the bottom and 1/2" above, with a height of 7/16". When two pieces of milled lumber are joined together they create a 1/8" wide by 15/32" deep channel between the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.438
Depth of Cut: 0.438
Left Cutter Head
Thickness: 1.438
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$156.78
$156.78
Not Needed
Not Needed
Total:
$313.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$165.53
$165.53
Not Needed
Not Needed
Total:
$331.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.66
$178.66
Not Needed
Not Needed
Total:
$357.31
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
