Tongue & Groove 1-1/2" - 11

Tongue & Groove 1-1/2" - 11

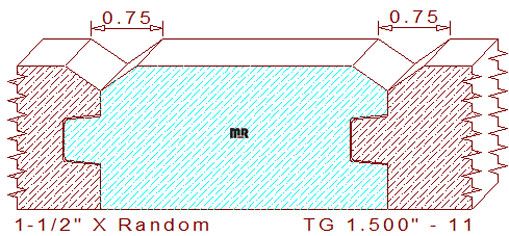

This 1-1/2" - 11 v-groove decking/siding measures 1-1/2" in thickness, and the widths are adjustable to desired sizes. The profile consist of a 1/2" wide tongue with a 3/8" wide chamfered edge; the groove is .031" larger to allow for expansion and contraction. Generally, the thicker the lumber, the more space is allowed for the board's movement. When two pieces of milled lumber are joined together, they create a decorative 3/4" wide v-groove on the face of the merged planks.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.520
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.895
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$169.00
Not Needed
Not Needed
Total:
$329.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$178.00
Not Needed
Not Needed
Total:
$347.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$191.50
Not Needed
Not Needed
Total:
$374.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
