Tongue & Groove 1-1/2" - 16
Tongue & Groove 1-1/2" - 16

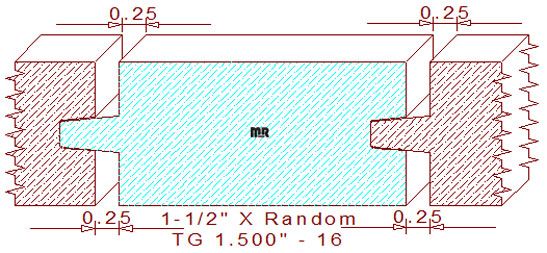

This 1-1/2" -16 gap/channel decking measures 1.500" in thickness, and widths are adjustable to the desired size. The profile consists of a 3/8" wide by 5/8" long tongue and a 3/8" wide by 3/8" deep groove with .020" of slop left in the joining area. When two pieces of finished milled lumber are joined together the tongue will bottom out in the groove creating a 1/4" wide by 9/16" deep gap/channel on both face sides of the boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.375
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.625
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$160.00
Not Needed
Not Needed
Total:
$320.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$169.00
Not Needed
Not Needed
Total:
$338.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$182.50
Not Needed
Not Needed
Total:
$365.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
