Tongue & Groove Moulding 1-1/2" - 19

Tongue & Groove Moulding 1-1/2" - 19

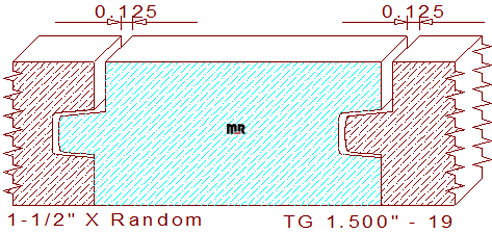

This 1/8" channel tongue & groove moulding 1-1/2" - 19 measures 1.500" thickness, the width can be produced to any desired size within the parameters of the molder or shaper used to mill the pattern. The decorative profile is comprised of 3/8" wide by 7/16" tall tongue and a 7/16" wide by 1/2" deep groove with a 1/8" wide offset, there is .062" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of lumber are joined together they create a 1/8" wide by 1/2" deep channel between the merged boards.

This cad generated dxf file contains four professionally designed profile template drawings with abundant information to create cutters for this beautiful tongue and groove detail, two template designs for milling face side up, and the other two for machining face side down. We always provide sufficient blend areas in the knives so no one will ever realize where one moulding cutter begins or ends.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.500" / Depth of Cut = .438" (right blades) & .500" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
