Tongue & Groove 1-1/2" - 23
Tongue & Groove 1-1/2" - 23

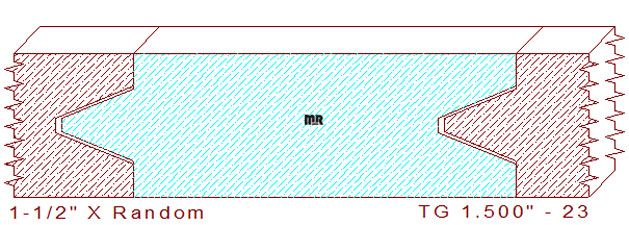

This 1-1/2" - 23 butt joint tongue & groove fencing/siding measures 1.500" thickness. The width can be milled to any size within the limits of the moulder used for manufacturing. The profile comprises a 3/4" wide by 3/4" tall v-shaped tongue flanked by 3/8" broad shoulders, and the groove is 1/16" larger to accommodate expansion and contraction of the wood during seasonal relative humidity changes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.813
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.750
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$169.00
Not Needed
Not Needed
Total:
$338.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$178.00
Not Needed
Not Needed
Total:
$356.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$191.50
Not Needed
Not Needed
Total:
$383.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
