Tongue & Groove 1-1/2" - 32
Tongue & Groove 1-1/2" - 32

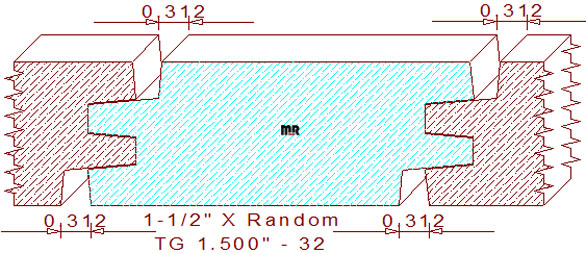

This unique 1-1/2" - 32 double gap siding measures 1.500" thickness, enabling the pattern to be machined from eight-quarter lumber. The width can be milled to any desired size within the parameters of the moulder/shaper used to cut the design. The custom profile comprises a 3/4" wide male and female interlocking joint with a .010" void for expansion and contraction of the lumber during seasonal changes in relative humidity. When two planks of milled lumber are joined, they create a 5/16" wide by 3/8" deep, slightly v-shaped channel between the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.794
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.794
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$169.00
Not Needed
Not Needed
Total:
$338.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$178.00
Not Needed
Not Needed
Total:
$356.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$191.50
Not Needed
Not Needed
Total:
$383.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
