Tongue & Groove 1-1/2" - 5
Tongue & Groove 1-1/2" - 5

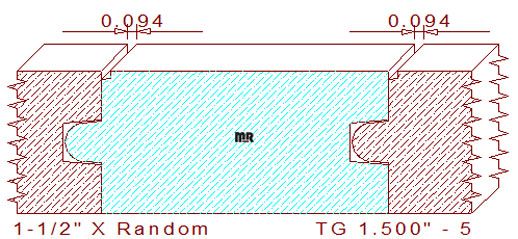

This 1-1/2" - 5 gap/channel decking measures 1-1/2" thickness, and widths are determined prior to milling. The profile consists of a 7/16" wide by 3/8" tongue, and a 15/32" wide by 13/32" groove, this leaves 1/32" of slop in the joint area for expansion and contraction. The pattern also has a 3/32" wide by 3/32" deep notch out of the top of the tongue side only, this is designed to create a 3/32" wide channel/gap for decorative purposes when two boards are joined together during the installation process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.406
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.469
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$160.00
Not Needed
Not Needed
Total:
$320.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$169.00
Not Needed
Not Needed
Total:
$338.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$182.50
Not Needed
Not Needed
Total:
$365.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
