Tongue & Groove 1-9/16"
Tongue & Groove 1-9/16"

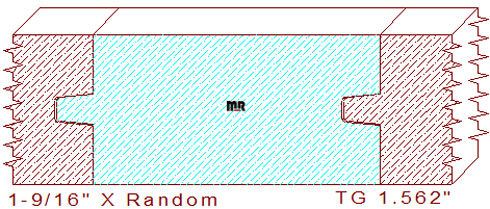

This typical 1-9/16" butt joint tongue & groove decking measures 1.562" thickness, necessitating the pattern be milled from eight-quarter lumber. The width can be machined to any desired size within the parameters of the molder or shaper used to cut the pattern. The simplistic profile comprises a 3/8" wide by 5/16" deep male and female joint with a .015" void left for lumber expansion and contraction during seasonal relative humidity changes. When two planks of milled lumber are joined, they create a simple butt joint.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.563
Depth of Cut: 0.395
Left Cutter Head
Thickness: 1.563
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$163.28
$163.28
Not Needed
Not Needed
Total:
$326.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.53
$172.53
Not Needed
Not Needed
Total:
$345.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$186.41
$186.41
Not Needed
Not Needed
Total:
$372.81
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
