Tongue & Groove 1-3/4" - 6
Tongue & Groove 1-3/4" - 6

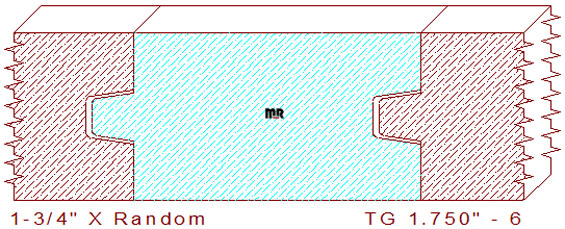

This 1-3/4" - 6 tongue & groove subfloor/decking measures 1.750" thickness; this detail is machined from the left and right vertical cutter heads, enabling the widths to be machined to any desired size. The basic butt joint profile comprises a 1/2" tall by 7/16" wide tongue and a 9/16" tall by 1/2" wide groove with eight-degree angled lines to aid in production and installation. When two milled boards are joined together, they create a simple butt joint with a .062" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.750
Depth of Cut: 0.438
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.00
$173.00
Not Needed
Not Needed
Total:
$346.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.00
$183.00
Not Needed
Not Needed
Total:
$366.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$198.00
$198.00
Not Needed
Not Needed
Total:
$396.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
