Tongue & Groove 1-27/32"
Tongue & Groove 1-27/32"

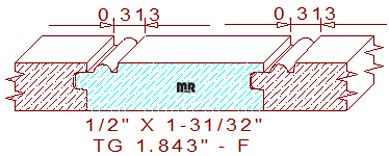

This Beadboard Tongue & Groove Moulding 1-27/32" Face measures 1.968" wide by .500" thickness with a face dimension of 1.843" when two pieces of finished milled lumber are joined together. The profile is comprised of a 1.520" wide horizontal fillet attached to a (recessed .015" for sanding) 3/16" wide half round bead flanked by 1/16" wide sunk fillets.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.145
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.156
Top Cutter Head
Width: 1.843
Depth of Cut: 0.094
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$177.84
Not Needed
Total:
$445.84
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$188.21
Not Needed
Total:
$470.21
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$203.77
Not Needed
Total:
$506.77
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
