Tongue & Groove 2" - 9
Tongue & Groove 2" - 9

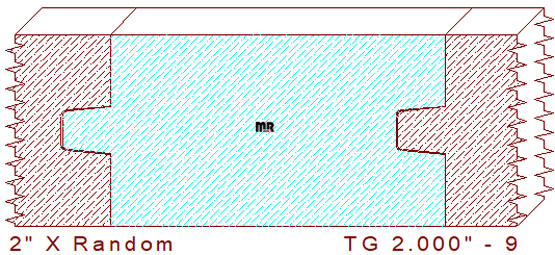

This hefty 2" - 9 tongue & groove butt joint decking measures 2.000" thickness, necessitating using ten-quarter lumber for milling on an industrial moulder. The width is adjustable to any desired size within the parameters of the machinery used to cut the pattern. The simplistic profile is composed of a 1/2" wide by 1/2" tall tongue and groove flanked by 3/4" tall line segments. When two pieces of milled lumber are joined together; they create a simplistic butt joint. There is a .015" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.000
Depth of Cut: 0.515
Left Cutter Head
Thickness: 2.000
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$186.00
$186.00
Not Needed
Not Needed
Total:
$372.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$197.00
$197.00
Not Needed
Not Needed
Total:
$394.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$213.50
$213.50
Not Needed
Not Needed
Total:
$427.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
