Tongue & Groove 2-7/32"

Tongue & Groove 2-7/32"

Tongue & Groove 2-7/32"

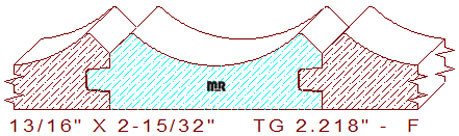

This 2-7/32" tongue & groove paneling measures 2.468" wide by .812" thick with a face coverage dimension of 2-7/32" wide. The concave profile comprises a 1/4" tall by 9/32" deep tongue & groove on the sides of the pattern. The top/face of the profile consists of a 1-9/32" radius scotia flanked with 5/16" wide chamfers on each side of the centered cove.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.812
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.812
Depth of Cut: 0.250
Top Cutter Head
Width: 2.219
Depth of Cut: 0.339
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$191.45
Not Needed
Total:
$452.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$203.33
Not Needed
Total:
$478.33
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$215.20
Not Needed
Total:
$504.20
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
