Tongue & Groove 2-1/4" - 2
Tongue & Groove 2-1/4" - 2

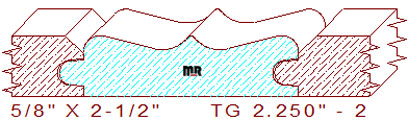

This decorative 2-1/4" - 2 tongue & groove paneling measures 2.500" overall width, with a face dimension of 2.250" wide by .625" thickness, enabling the detail to be cut from four-quarter lumber. The beautiful symmetrical profile is designed to be used in conjunction with tongue & groove .625" - 18, it is comprised of graceful bidirectional cyma recta on top, the side consists of a 1/4" wide by 9/32" tall t&g with a .010" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.270
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.250
Top Cutter Head
Width: 2.250
Depth of Cut: 0.291
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$199.00
Not Needed
Total:
$467.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$211.00
Not Needed
Total:
$493.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$229.00
Not Needed
Total:
$532.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
