Tongue & Groove 2-3/8" - 1

Tongue & Groove 2-3/8" - 1

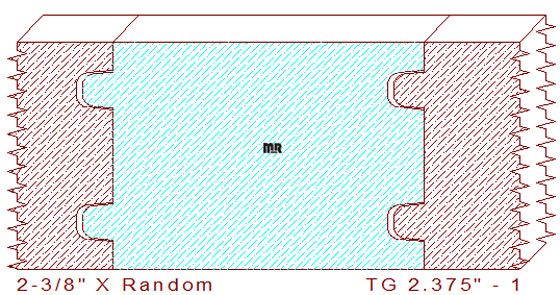

This Tongue & Groove Decking 2-3/8" - 1 measure 2.375" thickness, and widths can be milled to any desired size within the parameters of the machinery used to cut the pattern. The profile comprises two 5/16" tall fillets on the top and bottom, with a 1" tall fillet in the center. The tongue measures 3/8" tall by 5/16" deep with a 1/32" void area vertically and a 1/16" void area horizontally in the joint for expansion and contraction of the wood. When two finished milled pieces of lumber are coupled, they create a simple butt joint that can be utilized on roofs, outdoor decks, and truck or trailer decking.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.375
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.312
Top Cutter Head
Width: 2.375
Depth of Cut: 0.222
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$205.50
$205.50
Not Needed
Total:
$616.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$218.00
$218.00
Not Needed
Total:
$654.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$236.75
$236.75
Not Needed
Total:
$710.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
