Tongue & Groove 2-1/2" - 10
Tongue & Groove 2-1/2" - 10

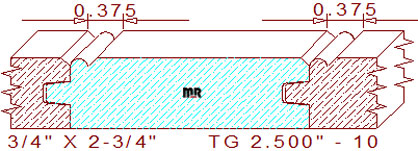

This beadboard tongue & groove 2-1/2" - 10, measures 2.750" width by .750" thickness, permitting the use of four quarter lumber for machining on a commercial-grade molder. The beaded profile contains a 2-1/8" broad flat line segment on the top center, connected to a 9/32" bead and angle on the left and a 3/32" beveled edge on the right side of the design. The tongue and groove dimensions are 1/4" wide by 1/4" deep with a .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two machined lumber pieces are joined, they create an evenly spaced design with a face coverage dimension of 2-1/2" wide.
You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog high-quality products we supply for your molder and knife grinding room. We offer competitive pricing and fast shipping options.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 2.500
Depth of Cut: 0.217
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$212.00
Not Needed
Total:
$480.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$225.00
Not Needed
Total:
$507.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$244.50
Not Needed
Total:
$547.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
