Tongue & Groove 3" - 12

Tongue & Groove 3" - 12

Tongue & Groove 3" - 12

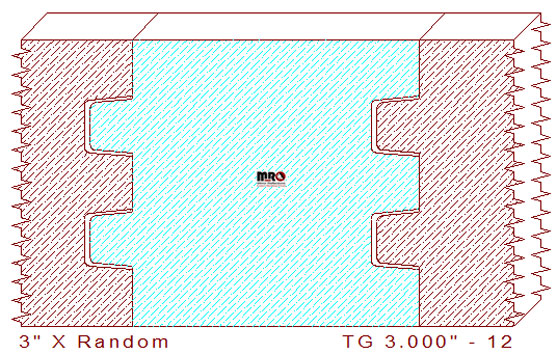

This 3" - 12 tongue & groove decking/ceiling measures 3.000" thickness, requiring twelve-quarter lumber for milling on an industrial moulder. The width gets milled to any desired size within the parameters of the machinery used to cut the pattern. The simplistic detail composes two 5/8" tall by 1/2" deep recessed grooves divided by a 9/16" fillet on the right edge. The opposing side retains two 9/16" tall by 7/16" protruding tongues separated by a 5/8" vertical line segment. When two pieces of lumber merge, they create a simple butt joint with a .062" void in the t & g area for seasonal changes in relative humidity. We offer an additional profile in a four-inch thickness for your review and consideration, tongue & groove 4.000" - 19.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.500
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.438
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$187.50
(Template not needed)
$187.50
(Template not needed)
Not Needed
Not Needed
Total:
$375.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.50
(Template not needed)
$202.50
(Template not needed)
Not Needed
Not Needed
Total:
$405.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$217.50
(Template not needed)
$217.50
(Template not needed)
Not Needed
Not Needed
Total:
$435.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
