Tongue & Groove 3" - 15
Tongue & Groove 3" - 15

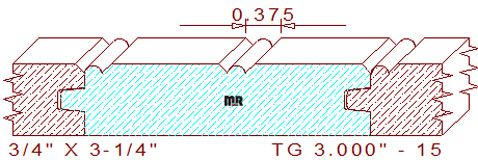

This Beadboard Paneling 3" - 15 measures 3.250" wide overall with a 3" exposed face when installed with a .750" thickness. The profile is comprised of a 1/4" wide by 1/4" deep tongue and groove with two 3/8" wide vee grooves attached to a center bead divided by 1-1/8" wide fillets, the beads in the design are lower than the surface plane by .015" for sanding after milling if desired.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 3.000
Depth of Cut: 0.218
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$238.00
Not Needed
Total:
$506.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$253.00
Not Needed
Total:
$535.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$275.50
Not Needed
Total:
$578.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
