Tongue & Groove Moulding 3-1/16" - 4

Tongue & Groove Moulding 3-1/16" - 4

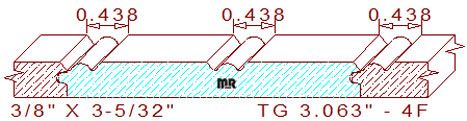

This Beadboard Paneling Moulding 3-1/16" - 4 measures 3.156" overall with a face dimension of 3.062" wide with thickness is .375". The profile is comprised of two half round circles flanked by a 1/32" wide fillet and two chamfers with 1-3/32" wide fillets attached. When two pieces of finished milled lumber are joined together they create a 7/16" wide vee channel with a 3/16" wide bead in the center.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
