Tongue & Groove 3-1/8" - 1
Tongue & Groove 3-1/8" - 1

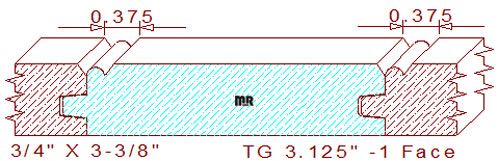

This tongue and groove measures 3-3/8" wide by 3/4" thickness, commonly referred to as wainscot or beadboard, the design has a 3/8" wide opening consisting of a half-round bead and chamfer on both sides, when two boards are joined together the face becomes 3-1/8" wide with 2-3/4" fillet between the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
