Tongue & Groove 3-1/8" - 10
Tongue & Groove 3-1/8" - 10

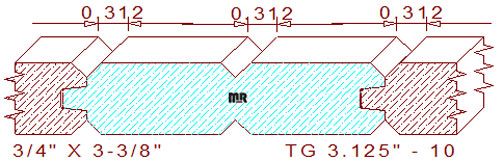

This 5/16" v-groove Tongue & Groove 3-1/8" Face - 10 measures 3.375" wide by .750" thickness with a face dimension of 3.125". The profile is composed of a single 5/16" wide V groove in the center with a 5/32" chamfer on each side edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
