Tongue & Groove 3-1/8" - 11
Tongue & Groove 3-1/8" - 11

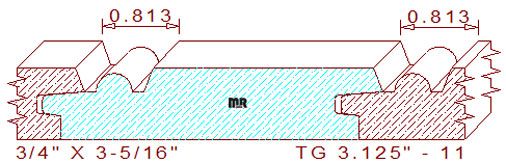

This Beadboard Tongue and groove 3-1/8" - 11 measures 3.312" wide by .750" thickness. The profile consists of a 3/16" radius half-round circle that is flanked by a 1/8" wide fillet on each side and a 1/8" wide chamfer/angle when two pieces of lumber are joined they form a 13/16" wide gap detail in the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
