Tongue & Groove 3-1/8" - 3
Tongue & Groove 3-1/8" - 3

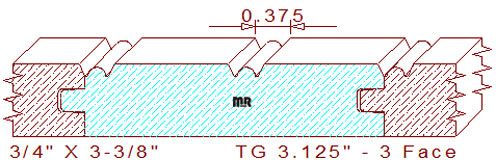

This Beadboard Tongue & Groove 3-1/8" Face - 3 measures 3-3/8" wide overall with a 3.125" face by 3/4" thickness, commonly called beadboard or wainscot paneling. The design has two 3/8" wide openings consisting of a 3/32" radius bead with a 1/32" fillet and chamfer on both sides. When two pieces of lumber are joined together, the face dimension becomes 3-1/8" wide with 1-3/16" wide fillets between the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
