Tongue & Groove 3-1/8" - 5
Tongue & Groove 3-1/8" - 5

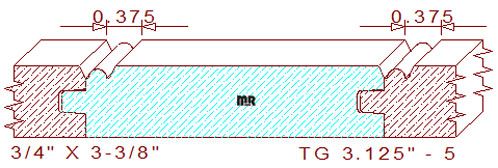

This beadboard tongue & groove measures 3-3/8" wide and 3/4" thickness, often called Wainscot. When two pieces of lumber are joined together they form a 3/8" wide gap consisting of a 3/32" half round bead, flanked by a 1/32" wide fillet and chamfer.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
