Tongue & Groove 3-1/8" - 8

Tongue & Groove 3-1/8" - 8

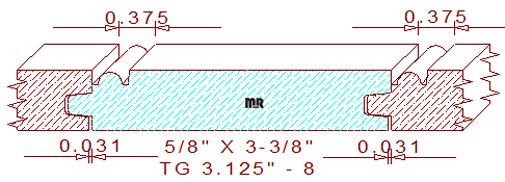

This attractive 3-1/8" - 8 beadboard measures 3.375" wide by 5/8" thickness. When two boards are joined together, they form a 3/8" wide gap that consists of a 1/4" wide half round beads, flanked by two 1/16" wide fillets that create a quirk, the bead sits below the surface .020" to allow for sanding after milling. The bottom side has a 1/32" wide gap to assure a good fit when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
