Tongue & Groove 3-1/4"

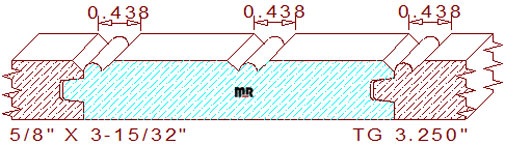

This 3-1/4" tongue & groove beadboard paneling measures 3.469" overall width, with a face coverage dimension of 3.250" wide by .625" thickness, allowing the pattern to be machined from four-quarter lumber. The embellishing profile is composed of a 7/16" wide v-groove with a recessed (.031") center bead, flanked by two 1-3/16" broad line segments joined to one half of the profile on the left, and a 1/8" beveled edge on the right side of the pattern. The sides consist of a 1/4" deep groove and a 7/32" wide tongue with a .006" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.

This template-ready CAD-generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative pattern. All our innovative profiles have proven unbroken CNC tool paths, making your job effortless in production.

The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
