Tongue & Groove 3-1/4" - 5

Tongue & Groove 3-1/4" - 5

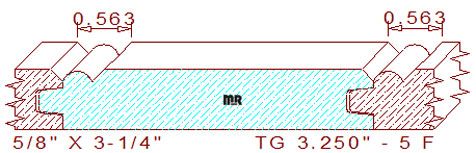

This tongue and groove beadboard molding measures 3-1/2" wide overall with a face dimension of 3-1/4", the thickness measures 5/8", the profile is composed of a 7/16" wide half round bead and chamfer on one side, and a 1/8" chamfer on the other side. The tongue and groove are slightly under 9/32" wide with .010" of slop left in the joint area for expansion and contraction of the boards after installation.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
