Tongue & Groove Moulding 3-3/8"

Tongue & Groove Moulding 3-3/8"

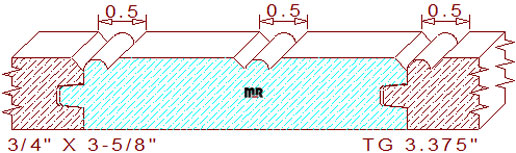

This standard beadboard tongue & groove moulding 3-3/8" measures 3.625" wide overall, the face dimension for installation purposes is 3.375" wide by .750" thickness. The profile is composed of a 1/4" wide by 9/32" deep groove on the right side, the tongue on the left measures 1/4" wide by 1/4" deep with a .010" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity. The face side consists of two recessed 1/4" wide half round beads flanked by small 1/8" wide bevels, divided by two 1-3/16" wide line segments on each side of center.

This cad generated dxf file contains three skillfully drafted template designs for creating knives for this creative beadboard paneling pattern. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.375" / Depth of Cut = .258" (top knives.)

Thickness = .750" / Depth of Cut = .281" (right blades) & .250" (left cutters.)
