Tongue & Groove 3-3/8" - 1

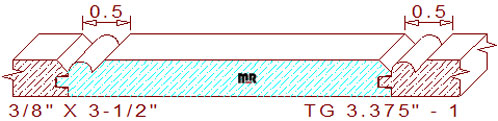

This beautiful 3-3/8" - 1 wainscot paneling measures 3.500" wide overall, and the face coverage dimension for installation purposes is 3.375" wide by .375" thickness. The lovely profile comprises a 1/8" wide by 1/8" deep groove on the right, and the tongue on the left side is the same dimension. The void in the t & g joint for seasonal changes in relative humidity is controlled by the left axial cutter head on the molder. The face side consists of a 2-7/8" broad horizontal line with a 1/8" chamfer on one side, a recessed 1/4" wide half-round bead, and a 1/8" beveled line. When two pieces of milled lumber are joined, they create a 1/2" wide beaded v joint between the merged boards. We offer many style wainscot caps for this detail; here is just one you may want to review and consider, cap .750" - 2.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.
