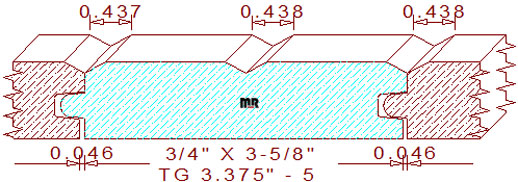

This v-joint 3-3/8" - 5 tongue & groove siding measures 3.625" wide by .812" thickness with a face dimension of 3.375", enabling the detail to be machined from four-quarter lumber. The decorative profile is composed of a 9/32" tall by 5/16" wide groove with a 3/64" offset on the bottom side and a 17/64" tall by 1/4" wide tongue. There is a .010" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. The face side retains a 7/16" wide by 1/8" deep v-groove in the center, flanked by 1-1/4" broad line segments with a 7/32" wide by 1/8" deep beveled line on each side edge of the pattern.
This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative tongue & groove siding pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.313
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 3.375
Depth of Cut: 0.187
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$257.50
Not Needed
Total:
$525.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$274.00
Not Needed
Total:
$556.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$298.75
Not Needed
Total:
$601.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
