Tongue & Groove 3-3/8" - 7

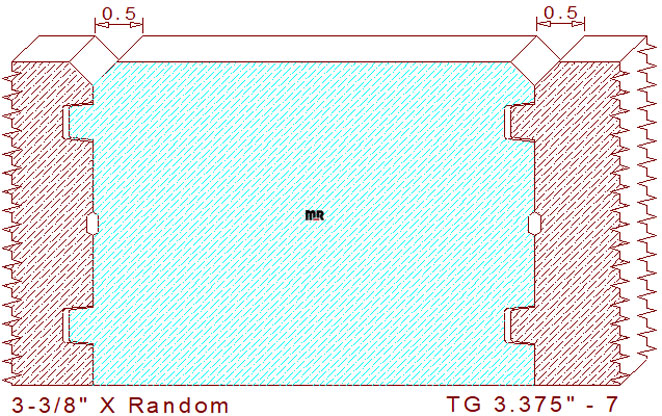

This tongue & groove ceiling molding 3-3/8" - 7 measures 3.375" thickness, the width can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The bulky profile is composed of two 13/32" tall by 5/16" deep grooves divided by a 47/64" tall line segment, with a small nail groove area for hiding fasteners used to secure the wood to the framework, and a 1/4" wide by 1/4" tall beveled edge. The opposite side consists of two 3/8" tall by 1/4" wide tongue's with a 1/4" wide groove also used to conceal fasteners with a 1/4" wide by 1/4" deep chamfer on the face side. When two planks of milled lumber are joined together they create a decorative 1/2" wide by 1/4" deep v-groove on the face side of the ceiling visible from the room below, there is .031" of void in the joint for expansion and contraction of the lumber during seasonal changes in relative humidity.

Utilize any of our user-friendly profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years experience in woodworking and was a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 3.375" / Depth of Cut = .375" (right blades) & .625" (left cutters).
