Tongue & Groove 3-1/2" - 5

Tongue & Groove 3-1/2" - 5

Tongue & Groove 3-1/2" - 5

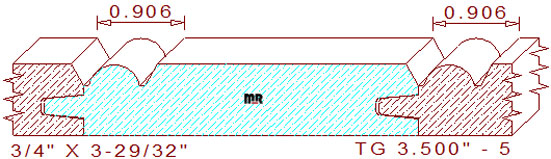

This unique 3-1/2" - 5 tongue & groove beadboard measures 3.909" overall with a coverage dimension of 3.500" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The embellished profile is composed of a 7/16" wide by 1/4" tall groove on the right, with a 13/32" wide by 1/4" tongue with a .010" void for expansion and contraction of the wood during seasonal changes in relative humidity. The face side consists of a 2-19/32" flat line flanked by a 1/8" chamfered edge on the right, with a recessed 17/32" wide half round bead bordered by 1/16" broad line segments and a 1/8" beveled edge on the left. When two milled boards are joined together, they create a 29/32" wide v-shaped joint with a centered bead between the merged boards.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.437
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.406
Top Cutter Head
Width: 3.500
Depth of Cut: 0.312
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$255.50
Not Needed
Total:
$516.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$272.50
Not Needed
Total:
$547.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$289.50
Not Needed
Total:
$578.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
