Tongue & Groove 3-1/2" - 9
Tongue & Groove 3-1/2" - 9

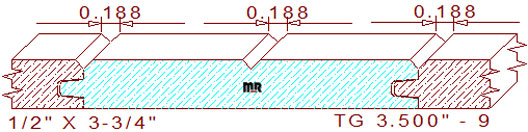

This 3-1/2" - 9 v-joint tongue & groove measures 3.750" overall with a face coverage dimension of 3.500" wide by .500" thickness, allowing the detail to be machined from either resawn six or solid four-quarter lumber. The ornamental profile is composed of a 3/16" wide by 3/32" deep v-groove in the center, flanked by a 1-9/16" wide line segment with a 3/32' wide forty-five-degree chamfer on each side edge of the pattern. There is a .008" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity.
Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.250
Top Cutter Head
Width: 3.500
Depth of Cut: 0.154
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$264.00
Not Needed
Total:
$532.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$281.00
Not Needed
Total:
$563.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$306.50
Not Needed
Total:
$609.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
