Tongue & Groove 4-1/2" - 5

Tongue & Groove 4-1/2" - 5

Tongue & Groove 4-1/2" - 5

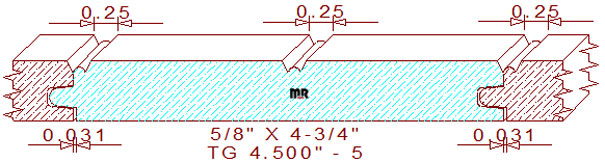

This lovely 4-1/2" - 5 beadboard tongue & groove measures 4.750" width by .625" thickness. The overall size allows a 5" wide blank of four-quarter lumber for milling on an industrial moulder. The small beaded profile contains a 9/32" wide by 1/4" tall groove on the right and a 1/4" wide by 1/4" tall tongue, with a 1/32" back cut on the left. There is a .015" void in the T&G joint area for seasonal changes in relative humidity. The top comprises a recessed (.062") 1/8" wide half-circle joined to a 1/16" broad angle on the left. This area joins two 2" flat sections divided by a 1/4" wide beaded channel in the center with another 1/16" chamfer above the groove on the design's right side. When two pieces of milled lumber merge, they create a 4-1/2" face coverage dimension with 1/4" wide beaded channels and a 1/32" gap on the bottom to assure a perfect fit when installed.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that unique profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easily the services we provide can increase productivity and reduce your manufacturing cost.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.271
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.282
Top Cutter Head
Width: 4.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$305.50
Not Needed
Total:
$566.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$326.50
Not Needed
Total:
$601.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$347.50
Not Needed
Total:
$636.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
