Tongue & Groove 4-1/2" - 6
Tongue & Groove 4-1/2" - 6

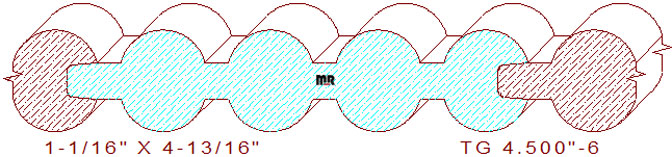

This reeded 4-1/2" - 6 tongue & groove door panel measures 4.812" width by 1.062" thickness. The overall size allows a 5-1/16" wide blank of five-quarter lumber for milling on a commercial moulder. The elegant profile contains a 5/16" wide by 3/8" tall tongue & groove; the top radial cutter head on the moulder controls the void in the joined area for seasonal changes in relative humidity. The detail comprises four 7/8" wide convex semicircular arcs divided by four 1/4" broad sunk fillets. When two pieces of milled lumber merge, they create a 4-1/2" face coverage dimension with a reeded pattern on both face sides of the boards.
All our precision cad (computer-aided design) files contain necessary machine setup and grinding information, all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.062
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.584
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.584
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.22
Not Needed
$316.00
$273.00
(Template not needed)
Total:
$726.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.47
Not Needed
$337.00
$294.00
(Template not needed)
Total:
$775.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.34
Not Needed
$368.50
$325.50
(Template not needed)
Total:
$849.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
