Tongue & Groove 4-1/2" - 7

Tongue & Groove 4-1/2" - 7

Tongue & Groove 4-1/2" - 7

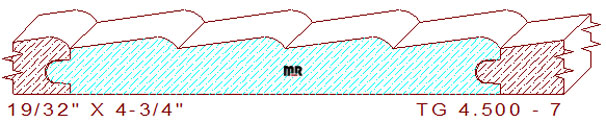

This 4-1/2" - 7 tongue & groove teardrop siding measures 4.750" width by .594" thickness. The overall size allows for a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The functional profile contains a 17/64" wide by 1/4" tall groove and a 1/4" by 1/4" tongue with a built-in .008" void for seasonal changes in relative humidity. The detail comprises four 1-1/8" broad segments consisting of a 1/4" radius convex semicircle tangent off of a 7.638-degree downsloping angled line. When two pieces of milled lumber merge they create a 4-1/2" face coverage dimension with a decorative teardrop design for displacing moisture when used in outdoor applications.

Do you need machinery or tool room supplies? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies available in our industry.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.594
Depth of Cut: 0.266
Left Cutter Head
Thickness: 0.594
Depth of Cut: 0.250
Top Cutter Head
Width: 4.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$305.50
Not Needed
Total:
$566.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$326.50
Not Needed
Total:
$601.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$347.50
Not Needed
Total:
$636.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
