Tongue & Groove 4-1/2" - 9

Tongue & Groove 4-1/2" - 9

Tongue & Groove 4-1/2" - 9

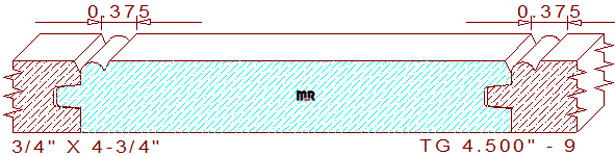

This beaded 4-1/2" - 9 tongue & groove siding measures 4.750" width by .750" thickness utilizing a five-inch-wide blank of four-quarter lumber for milling on an industrial moulder. The decorative profile contains a 9/32" wide by 1/4" tall groove on the right and a 1/4" wide by 1/4" tall tongue with a .010" void in the joint for seasonal changes in relative humidity. The top retains a recessed (.017" for sanding) 1/4" wide half-circle with a 1/16" wide forty-five-degree angle on the left. Joined to a 4-1/8" flat section in the center with another forty-five-degree chamfer on the right edge above the groove. When two pieces of milled lumber are merged, they create a 4-1/2" face coverage dimension with a 3/8" wide beaded v-groove.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig molder/grinder field service technician. Our custom profiles reflect your imagination's creative style, from an idea in one's mind to reality in your beautiful home. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Top Cutter Head
Width: 4.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$305.50
Not Needed
Total:
$566.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$326.50
Not Needed
Total:
$601.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$347.50
Not Needed
Total:
$636.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
