Tongue & Groove 4-15/16"
Tongue & Groove 4-15/16"

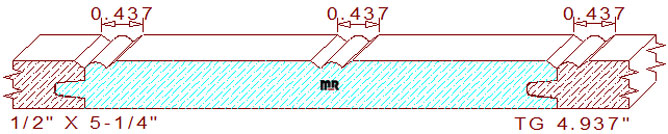

This 4-15/16" tongue & groove beadboard measures 5.250" wide by .500" thickness, allowing the detail to be machined from four-quarter lumber. The face coverage dimension for installation purposes is 4-15/16" wide. The custom profile is composed of a recessed 1/8" radius bead flanked by 36.628-degree beveled lines in the center, bordered by 2-1/32" broad line segments with another 36.628-degree angled line on the right side above the groove, and two-thirds of the same profile from the middle is positioned on the left side above the tongue. When two pieces of lumber are joined together, they create a 7/16" wide beaded v groove, as illustrated above.
The cad-generated dxf file available for purchase below contains three skillfully drafted template designs for producing knives for this creative beadboard pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.318
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.313
Top Cutter Head
Width: 4.937
Depth of Cut: 0.161
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$338.72
Not Needed
Total:
$606.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$361.47
Not Needed
Total:
$643.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$395.59
Not Needed
Total:
$698.59
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
