Log Cabin Siding Tongue & Groove Moulding 5" - 6

Log Cabin Siding Tongue & Groove Moulding 5" - 6

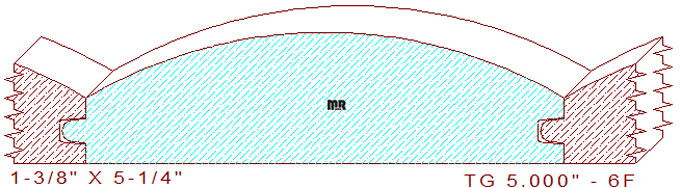

This Log Cabin Siding Tongue & Groove Moulding 5" - 6 measures 5.250" wide overall, by 1-3/8" thickness, with a .281" depth of cut on the right vertical blades, .250" depth of cut on the left vertical cutters, and .750" depth of cut on the top horizontal set of knives.

The log shaped profile consists of a 4-57/64" radius arc with a 11/16" tall area on each side of the plank that contain a tongue and groove joint for installing the boards. When two milled pieces of lumber are joined together they create a five inch face dimension with 1/32" of void in the joint area for expansion and contraction of the boards during seasonal changes in relative humidity.

This Cad generated Dxf file contains three skillfully drafted moulding template designs for creating custom moulding knives for this creative log siding pattern. All our innovative moulding profiles have a proven unbroken C.N.C. tool path expediting the template making and knife grinding process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
