WP-10 Tongue & Groove 5-1/16" - 2
WP-10 Tongue & Groove 5-1/16" - 2

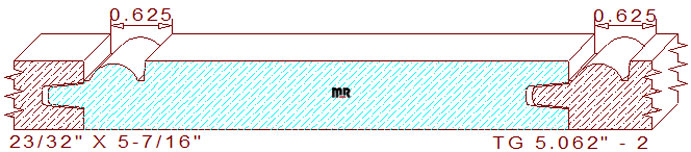

This (WP-10) 5-1/16" - 2 tongue & groove paneling measures 5.438" overall width and a thickness of .718", requiring the use of a 5-11/16" wide blank of four-quarter lumber for milling on an industrial-grade molder. The long-established profile contains a 4-7/16" flat section with a 13/64" vertical step on the top center. It's connected to a recessed 1/2" wide half-round bead, flanked by 1/16" sunken fillets. The groove dimensions are 7/16" wide by 17/64" tall. The tongue measures 3/8" wide by 1/4" tall, with a 0.020" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber are joined, they create a decorative 5/8" broad channel between the merged boards.
Looking for that special profile to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.437
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.375
Top Cutter Head
Width: 5.062
Depth of Cut: 0.175
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$345.22
Not Needed
Total:
$613.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$368.47
Not Needed
Total:
$650.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$403.34
Not Needed
Total:
$706.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
