Tongue & Groove 5-1/16" - 3
Tongue & Groove 5-1/16" - 3

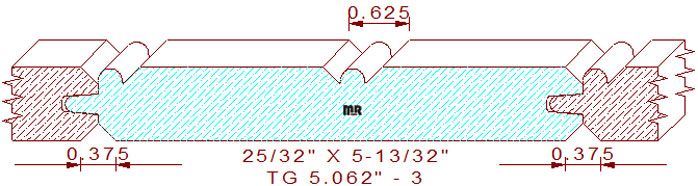

This tongue and groove molding measures 5-13/32" wide by 25/32" thickness, the exposed dimension is 5-1/16" wide, the profile is composed of two 5/8" wide V grooves with a bead in the center on one face of the lumber, the backside creates a 3/8" wide V groove when two boards are joined together, this enables either side to be used for installation creating a very operational unique product for different rooms in the house.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.781
Depth of Cut: 0.325
Left Cutter Head
Thickness: 0.781
Depth of Cut: 0.621
Top Cutter Head
Width: 5.062
Depth of Cut: 0.235
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$345.22
Not Needed
Total:
$613.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$368.47
Not Needed
Total:
$650.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$403.34
Not Needed
Total:
$706.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
